QM1L Scaling Rig

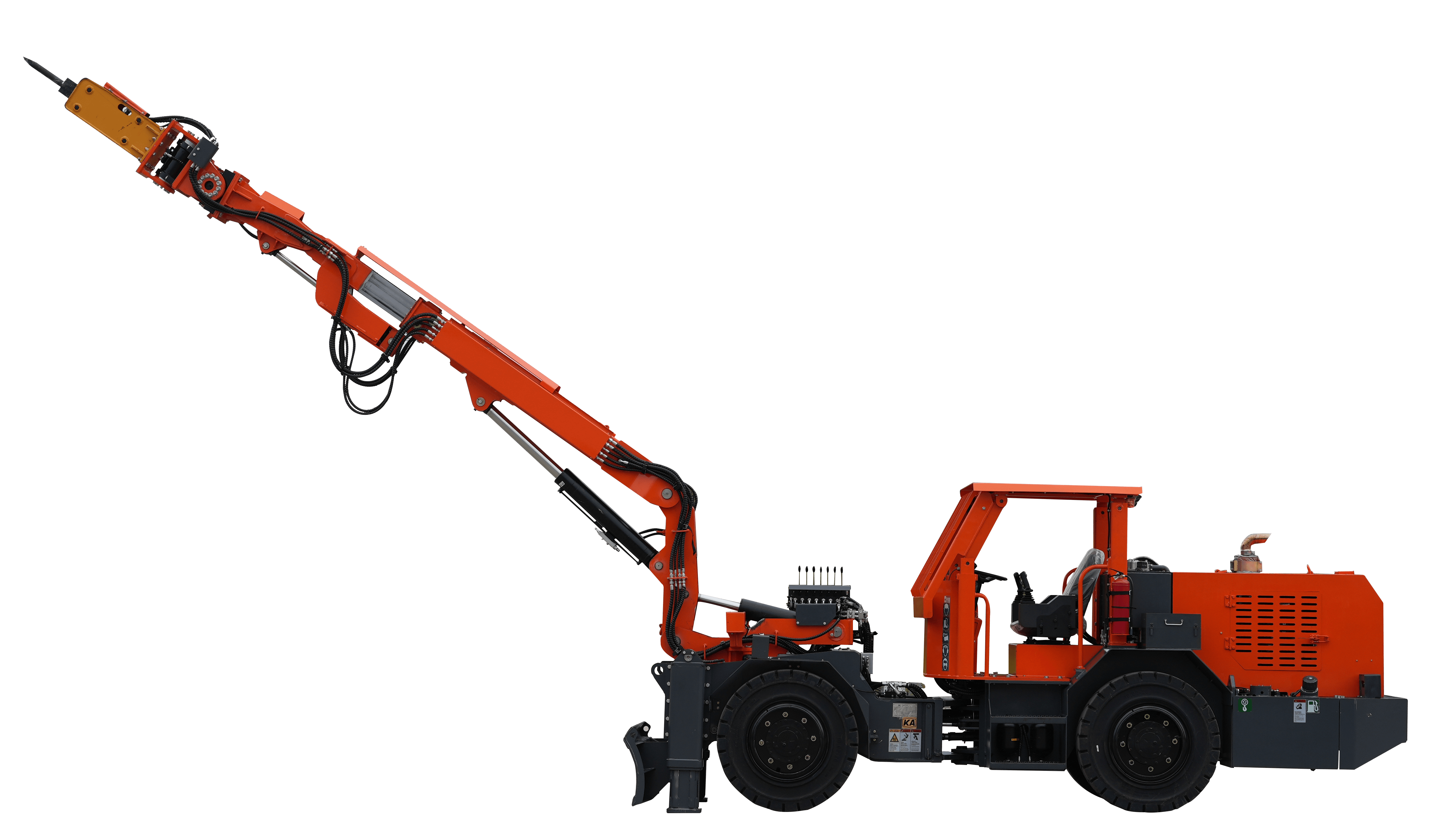

QM1L scaling rig is a special equipment designed for mechanized scaling in small and medium size drifts and tunnels. It can quickly and effectively remove the unstable rocks on roof and two sides to ensure the safety of operators and machines. The suitable cross-sections (width x height) is from minimum 3m x 2.5m to maximum 8m x 8m.
Breaking Hammer
The breaking hammer’s impact frequency is 600 to 1100 bmp, and the impact power is 362j. This hammer is specially designed for scaling rig. The fastest impact frequency is 1100bpm, which can remove the unstable rocks and protect the original tunnel roof from damage as much as possible.
Boom
The boom of QM1L has a compact structure with more concentrated force and more stability. Near the breaking hammer there are two helical swing cylinders, which can deliver 360° pitching and swinging without dead angle.
Dust Of
The exhaust gas purification uses water filtration to improve the working environment. Also there is water pump to remove the dust when scaling.
